$48.7 USD
-
SW-102S+S042+S005_USB01
483 kg
-
-

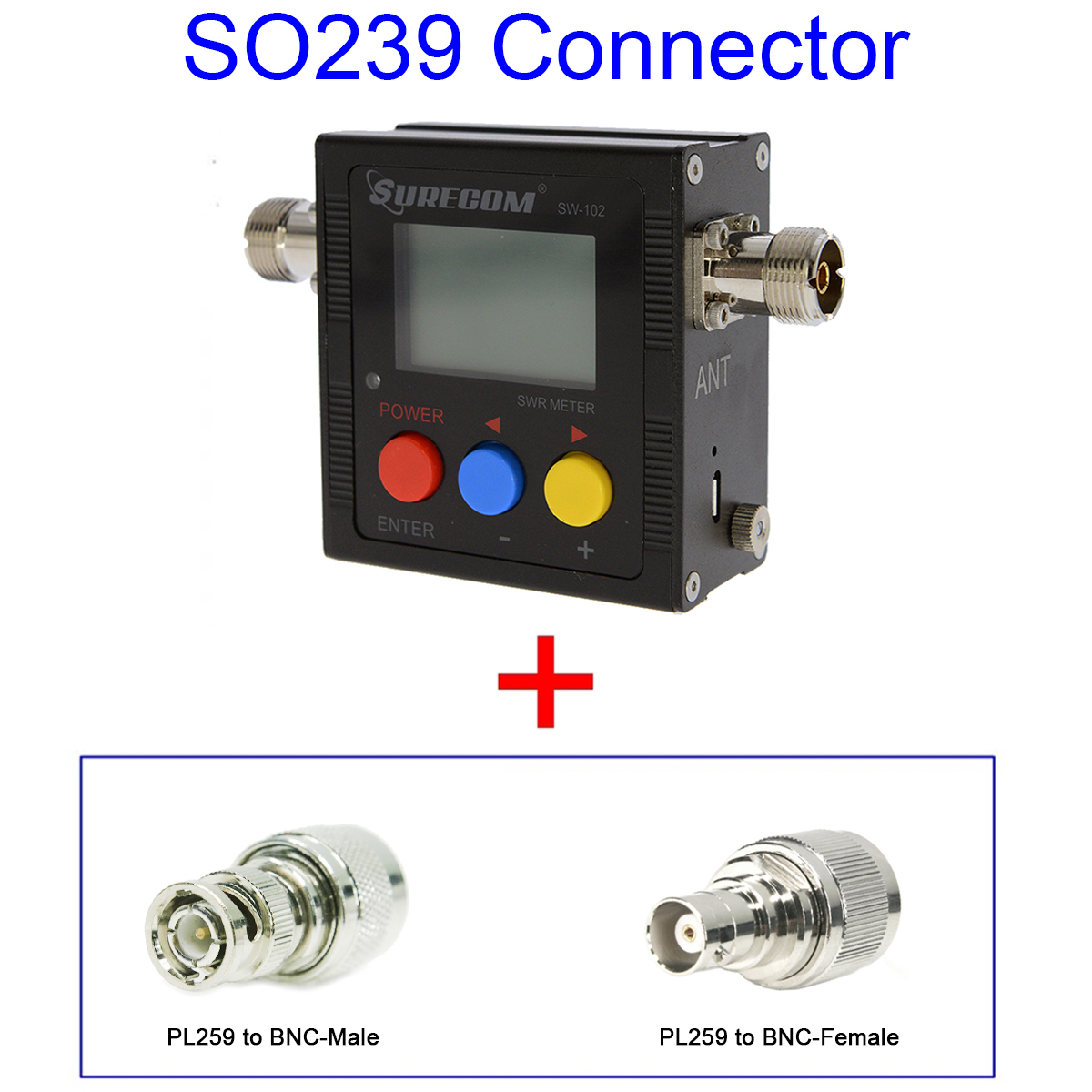

SW102-S+S042+S005
V.S.W.R. meter Introduction
VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequency counter .
All Funtion display ( Frequency counter ,Power watt , SWR ,FW,RW,Battery Level)
Feature & Specification
Frequency range: 125 - 525MHz
Measurable power range: 0.5 - 120W(+-0.5%)
Input read frequency counter (must be < 0.5 W)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery : 3.7V Li-ion Rechargeable Battery
* Not for the digital radio.
Interface: SO239
| Feature & Specification (for version 2.02) | |
| MAX. Power in | 120 W (Measurable power,Radio must be ANALOG) |
| V.S.W.R | 1.00~19.99 |
| Frequency Ranger | COVER : 125MHz~525MHz |
| Insertion Loss | < 0.15dB(VHF) , < 0.25dB(UHF) |
| Temperature | 0℃~60℃ |
| Frequency counter | Yes ( TX input must be minimum 0.5W + - 0.5%) |
| Battery Display | Yes |
| Battery Build-in | 3.7V Li-ion Battery |
| Auto Power Off | 1-9 mins |
| Size | 66*68*37 (mm) |
| Charger in | 5V (micro usb) |
| Backlight | AUTO OFF |
| Interface (in and out ) | SO239 |
| Weight | 220g (include battery) |
Press 2 second the [Red button] to power on or power off
| MENU Dispaly (Note: Version for up to V2.02) | ||||
| No. | Mode | Adj |
Default Setting |
Content |
| 1 | Adjustment Forward | -99 to +99 | 0 | Fine Tune Level % |
| 2 | Adjustment Reverse | -99 to +99 | 0 | Fine Tune Level % |
| 3 | Adjustment Time Base | -99 to +99 | 0 | Frequency Counter ,OSC Time Base |
| 4 | LCD DIM (Back Light Time) | 0-9 | 1 | "0" is always on, 1 min to 9 mins |
| 5 | POWER OFF | 0-9 | 3 | "0" is always on, 1 min to 9 mins |
* Supplier, the product will add functionality without having to give notice |
||||
