Front 1.5" & Rear 2" Full Kits Suspension Lift Kit Fors Hilux Vigo 2005++

Front 1.5" & Rear 2" Full Kits Suspension Lift Kit Fixs Hilux Vigo 2005++

Product Overview :

Extended Shackles:

~ Greasable Shackle

~ It will a much smooth ride on or offroad as the shackles are able to move with the leaf spring giving a much more linear stress reduced suspension action.

~ Greasable pins are used to ensure a comfortable ride that also accept standard bushes.

~ The greasable pins are pressed and then welded in to stop them from working loose and wearing the shackles plates.

~ The greasable nipples are encapsulated in the nut to avoid being damage offroad.

~ All extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, resulting in deformation of the bushings.

~ These shackles will give you approximately 2"inch (45-48 mm)or extra lift due to the fact that you are raising just one end of the spring.

Front Aluminium 25MM Shock Spacer:

- These spacers are 25mm thick and will lift the front of your car around 1.5" inch (35-38 mm)

- The spacers pictured are thicker for a bigger lift. The 25mm spacers fit on top of your strut top using the original studs and nuts. No studs of nuts are supplies with this kit as they are not needed.

- It is a simple job to install with basic hand tools.

- You can use these with your standard suspension or with aftermarket suspension to help level out the typical nose down appearance that the have.

The lift spacer is NOT a 1:1 ratio - Meaning that the lift height achieved is much greater than the actual thickness of the spacer. The reason is that the lower control arm counds the amount of lift due to its angle and length.

- Top quality extended shackles suitable for vehicle engineered to the highest standard. Will provide approximately 2" inch (45-48 mm) of lift.

Note :

- Installation Manual are not included

- Professional Installation is Recommended

- Some countries vehicle model and year may not be same as described (pls refer to pic)

- Rear Exhaust pipe and Shackle maybe touching each other. Rear Exhaust Piping need to adjust a bit, to create some space between shackle and exhaust pipe

- Any question about the item.. Please don't hesitate contact with us.. We will do our best to help you.. Thank You~

Suitable For : Hilux Vigo 05-14 4WD Model (pls refer to pic)

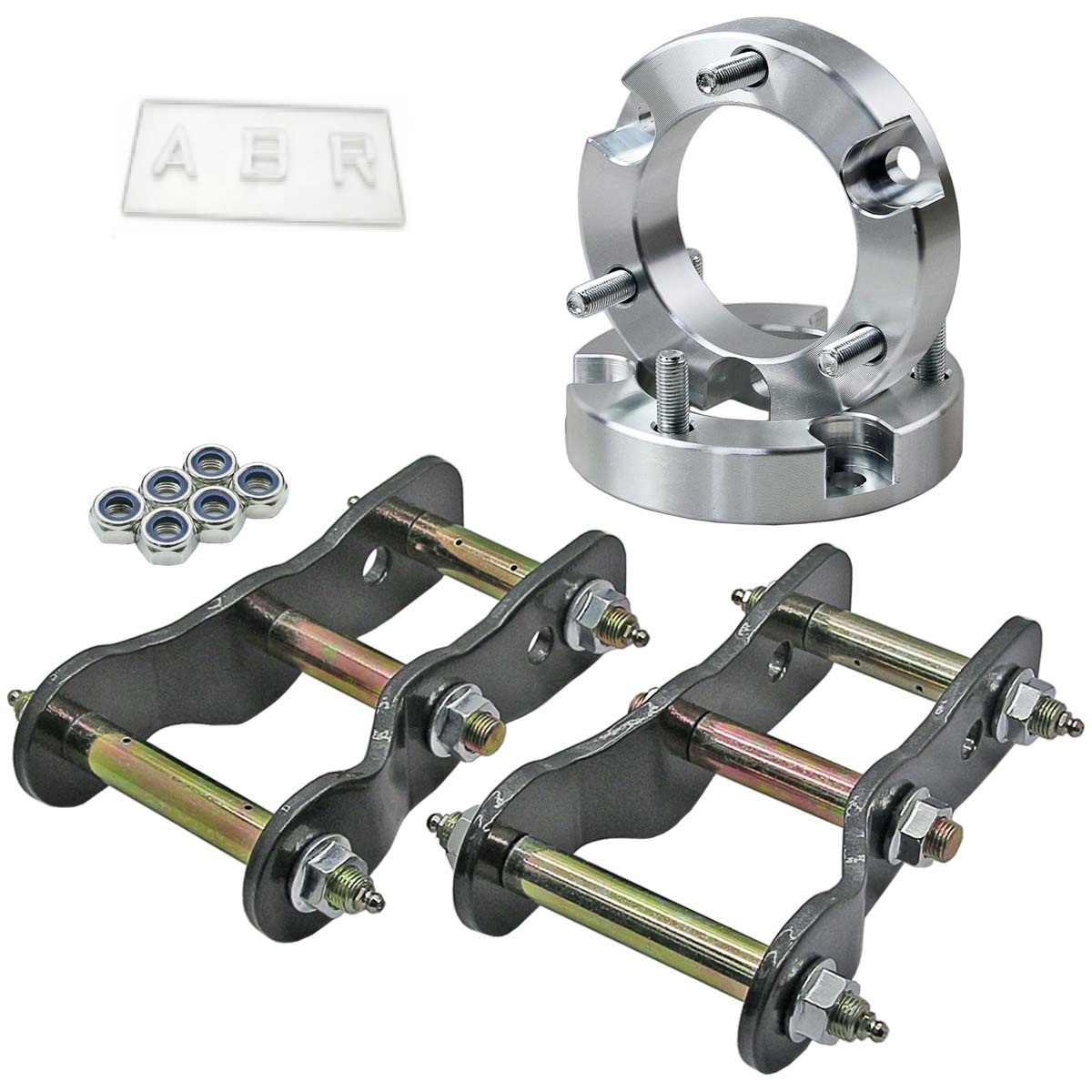

Package Included :

- 2x Strut Spacer

- 2x Shackle with Greasable Pin

Packing Size : 18x23X21 cm

Weight: 6 kg*
